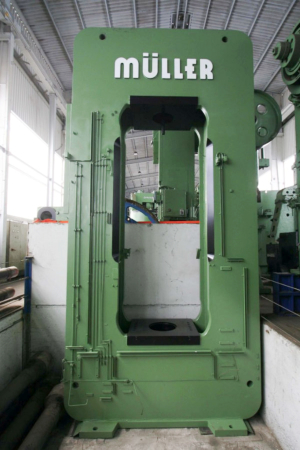

• Pressing power 2000 t • Stroke 400 mm • Table size (left to right) 1015 mm • Table size (front to back) 1050 mm • Ram (left to right) 975 mm • Ram (front to back) 1050 mm • Daylight 1000 mm • Return force 150 t • lower ejector (power) 6,3 t • lower ejector (stroke) 100 mm • Return speed of the ram Stößel 250 mm/s • upper ejector (power) 65 t • upper ejector (stroke) 100 mm • Pressure speed 20 mm / sec • Daylight of uprights 975 mm • Driving power 180 kW • Required space (l. to r.) 5000 mm • Required space (front/back) 6500 mm • Height of machine above floor 3650 mm • Total weight 105 t • Mode of operation hydraulic

Closed die forging - (alphabetical)

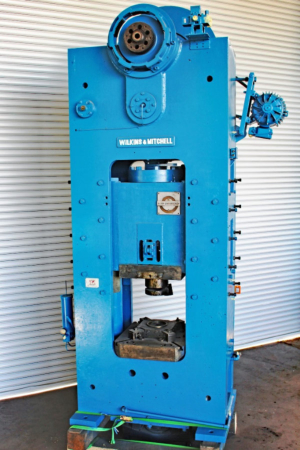

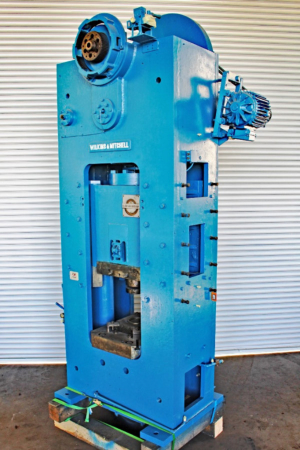

• Press capacity 200 t • Drive capacity 15 kW • Stroke 203 mm • Stroke rate 45 min-1 • Shut height 508 mm • Table size (left to right) 762 mm • Table size (front to back) 914 mm • Table height above floor 838 mm • Ram (left to right) 660 mm • Ram (front to back) 610 mm • Ram adjustment 102 mm • Lower ejector (power) 1,28 t • Lower ejector (stroke) 51 mm • Upper ejector (power) 1,28 t • Upper ejector (stroke) 51 mm • Total weight 19,8 t

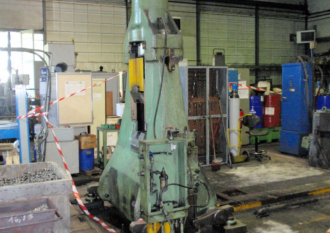

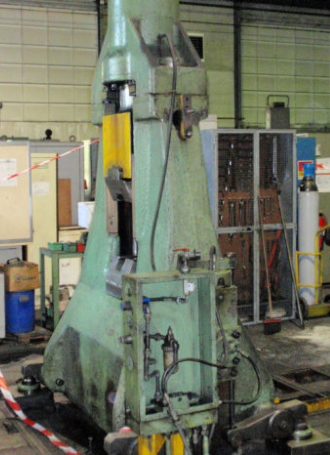

• Blow energy 2.000mkg • Surface of dies 200 x 450mm • Min. die height 160mm • Max. ram stroke 400mm • Number of strokes of ram 40 - 120min^-1 • Power of pumpmotor 22kW

4. Müller PUK 2000 (Z000427) 5. Smeral KJH 2 (Z000443) 6. Wilkins & Mitchell D30-HB 18 (Z000417)
