• Pressing power: 100 t • Stroke: 300 mm • Shut height: 900 mm • Table size (left to right): 900 mm • Table size (front to back): 800 mm • Upper ejector (power): 30 t • Upper ejector (stroke): 100 mm • Ram (left to right): 900 mm • Ram (front to back): 700 mm • Lower ejector (power): 10 t • Lower ejector (stroke): 100 mm • Pressure speed: 36 mm / sec • Distance between the guidance: 1000 mm • Driving power: 30 kW • Electrics: 380 / 50 V / Hz • Working pressure: 6 bar

• Permanently permissible maximum force: 150 t • Diameter of screw: 100 mm • Stroke: 300 mm • Shut height: 400 mm • Driving power: 7 kW • Electrics: 380 / 50 V / Hz • Dimensions: 1000 x 1200 x 2400 mm (W x D x H) • Mode of operation: mechanical

Other forging eq. - Page No. 2 (alphabetical)

• Pressing power 250 t • Stroke 300 mm • Daylight 1100 mm • Table size (left to right) 800 mm • Table size (front to back) 650 mm • Table height 840 mm • Table displacement no • Ram (left to right) 800 mm • Ram (front to back) 650 mm • Approach speed 350 mm / sec • Pressure speed at F max.14 mm / sec • Return speed 250 mm / sec • Lower ejector 1 • Lower ejector (power) 35 t • Lower ejector (speed) max. 120 mm / sec • Lower ejector (stroke) 25 mm • Upper ejector 1 • Upper ejector (power) 35 t • Upper ejector (speed) max. 120 mm / sec • Upper ejector (stroke) 25 mm • Driving power overall 60 / 380 / 50 kW / V / Hz • Dimensions 2350 x 1750 x 5050 mm (Wx Dx H) • Height of machine above floor 5050 mm • Total weight 12 t • Working pressure 260 bar • Oil quantity 600 l

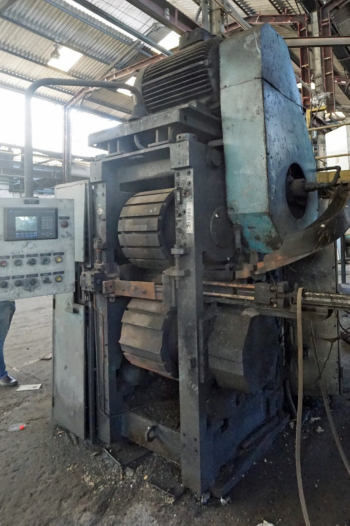

• Diameter of work piece 14 - 40 mm • Diameter of roll segment 600 mm • Width of roll 400 mm • Roll adjustment 25mm • Total weight 9,4 t • Comment mechanical

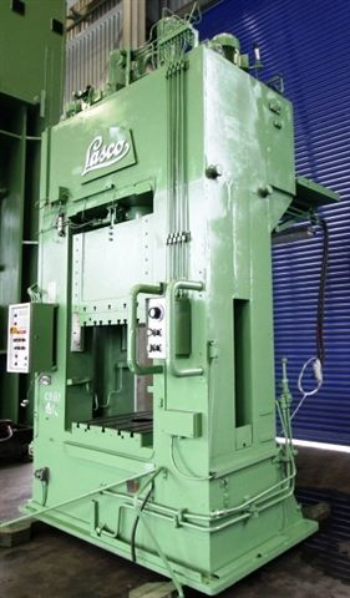

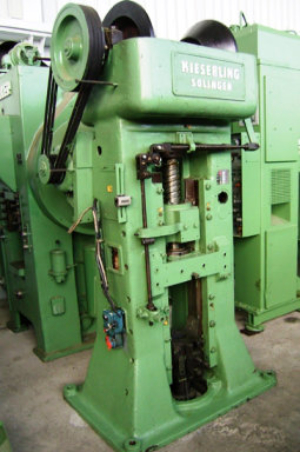

6. Kieserling VPS 100 (Vincent) (Z000165) 7. Lasco KP 100 SO (Z000272) 8. Sack & Kiesselbach OKP 250-35 (Z000531) 9. Smeral UL 35 (Z000525)
